Dimensions in m/m

marine

ignition starter switch

​FE-b1101

3 Position Off-On-Start , 2 Keys

3 Screw terminals

Copper Contacts

Rating : 15Amps @ 12Volts DC

Key is only removable in the Off position

Applications : Johnson Motors 378238

                   / Delco U-1401

3 Position Off-On-Start , 2 Keys

3 Screw terminals

Copper Contacts

Rating : 15Amps @ 12Volts DC

With Water-Proof Rubber Cover

Key is only removable in the Off position

Applications : Johnson Motor 378238 / Delco U-1401

​FE-b1102

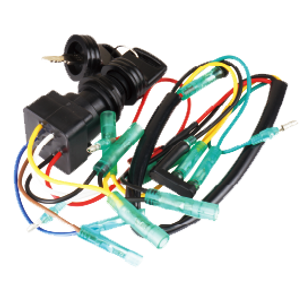

Control box ignition starter switch

3 Position

Applications : Yamaha outboard #703-82510-42

                   (Fits in control box 703-82510-12-00)

3 Position Off-On-Start , 2 Keys

3 Screw terminals

Copper Contacts

Rating : 20Amps @12Volts DC

Mounting Stem : 1-7/16” Long / 1/7/16” Diameter

With Water-Proof Rubber Cover

Key is only removable in the Off position

3 Position Off-On Start , 2 Keys

3 Screw terminals

Copper Contacts

Rating : 20Amps @ 12Volts DC

Mounting Stem : 1-7/16” Long / 1-7/16” Diameter

Key is only removable in the Off position

2 Position Off-On , 2 Keys

2 Screw terminals

Bronze Contacts

Rating : 15Amps @ 12Volts DC

Knurled black plastic with rubber cap

key is only removable in the Off position

3 Position Off-On-Start , 2 Keys

5 Screw terminals

Copper Contacts

Rating : 10Amps @ 12Volts DC

Hex Chrome Face Nut

Key is only removable in the Off position

2 Position Off-On , 2 Keys

2 Screw terminals

Bronze Contacts

Rating : 15Amps @ 12Volts DC

Hex Chrome Face Nut

Key is only removable in the Off position

3 Position Off-On-Start , 2 Keys

3 Screw terminals

Copper Contacts

Rating : 15Amps @ 12Volts DC

Mounting Stem : 1-7/16” Long / 1-7/16” Diameter

Knurled black plastic with rubber cap

Key is only removable in the Off position

2 Position Off-On , 2 Keys

2 Screw terminals

Copper Contacts

Rating : 15Amps @ 12Volts DC

Hex Chrome Face Nut

Key is only removable in the Off position

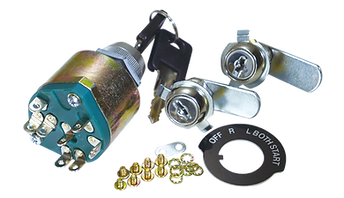

Ignition Starter Switch for Yacht , Aircraft

5 Position Off-Right-Left-Both-Start

8 Terminals

The kits also include locks sets (one door and one baggage lock)

mated to ignitioin switch

Replacement parts available

Key is only removable in the Off position

​FE-b1103

​FE-b1104

​FE-b1106

​FE-b1107

​FE-b1108

​FE-b1109

​FE-b1111/b1112

​FE-b1113

​FE-b1114
