Dimensions in m/m

forklift

ignition starter switch

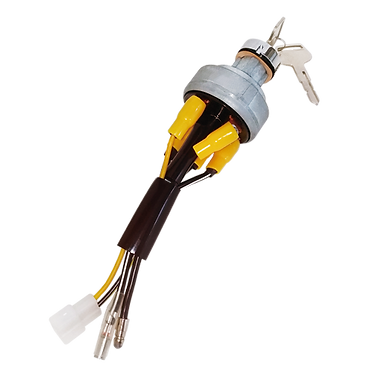

​FE-f1101

ignitin starter switch for forklift│drawing

4 Position ACC-Off-On-Start , 2 Keys

6 Terminals

Copper Contacts

Rating : 24Volts

Key is only removable in the Off position

4 Position ACC-Off-On-Start , 2 Keys

6 Terminals

Copper Contacts

Rating : 24Volts

Key is only removable in the Off position

4 Position ACC-Off-On-Start , 2 Keys

6 Terminals

Copper Contacts

Rating : 24Volts

Key is only removable in the Off position

4 Position ACC-Off-On-Start , 2 Keys

6 Terminals

Copper Contacts

Rating : 24Volts

Key is only removable in the Off position

4 Position OFF-ON(I)-ON(II)-ON(III), 2 Keys
6 Blade Terminals
Brass/Copper Contacts
Rating : 12-24Volts
Key is only removable in the OFF position
Application : Lucas 35670

​FE-f1102

​FE-f1103

​FE-f1104

​FE-f1105


3 Position Off-On-Start , 2 Keys

7 Blade terminals

Bronze Contacts

Anti-Restart

Key is only removable in the Off position

3 Position OFF-ON(I)-ON(II), 2 Keys
5 Terminals
Iron Contacts
Anti-Restart
Key is only removable in the OFF position

For Hyster Forklift No.272041


3 Position OFF-ON(I)-ON(II), 2 Keys
3 Screw Terminals
Copper Contacts
Key is only removable in the OFF position
For TCM Forklift Part No.22192-42301D


​FE-f1106

​FE-f1108

​FE-f1109

​FE-f1110


4 Position HEAT-OFF-ON-START, 2 Keys
6 Screw Terminals
Copper/Brass Contacts
Rating : 24 Volts
Anti-Restart
Key is only removable in the OFF position
Applications : Mitsubishi Forklift 91205-24900


4 Position HEAT-OFF-ON-START, 2 Keys
6 Screw Terminals
Copper/Brass Contacts
Rating : 24 Volts
Anti-Restart
Key is only removable in the OFF position
Applications : Mitsubishi Forklift 91205-24900

​FE-f1110a

3 Position OFF-ON(I)-ON(II), 2 Keys
3 Blade Terminals
Copper/Brass Contacts
Anti-Restart
Key is only removable in the OFF position
Applications : Toyota Motor 57510-23000-71

​FE-f1111


4 Position ON(III)-OFF-ON(I)-ON(II) , 2 Keys

4 Screw Terminals

Iron Contacts

Key is only removable in the OFF position

3 Position Off-On-Start , 2 Keys

4 Blade terminals

Copper Contacts

Anti-Restart

Key is only removable in the Off position

Applications : Nissan Motor 25150-02H01

3 Position Off-On-Start

3 Blade terminals

Bronze Contacts

Key is made from POM

Applications : Toyota Forklift


3 Position Off-On-Start 2 Keys

4 Blade terminals

Copper Contacts

Key is only removable in the Off position

Applications : Yale Forklift 9154944-00


3 Position Off-On-Start 2 Keys

6 Terminals

Silver Plated Copper Contacts

Anti-Restart

Key is only removable in the Off position


Burglar Alarm Switch

2 Position Off-On 2 Keys

2 Screw terminals

Iron Contacts

With Dust Shutter

Key is only removable in the Off position


Key Switch

2 Position Off-On 2 Keys

2 Blade terminals

Bronze Contacts

Key is only removable in the Off position


3 Position Off-On-Start 2 Keys

6 Terminals

Silver Plated Copper Contacts

Anti-Restart

Key is only removable in the Off position


​FE-f1112

​FE-f1113

​FE-f1114

​FE-f1115

​FE-f1116

​FE-f1122

4 Position ACC-Off-On-Start , 2 Keys

6 Screw terminals

Copper Contacts

Rating : 24 Volts

FE-F1110 with wire & Connector

Anti-Restart

Key is only removable in the Off position

Applications : Mitsubishi Forklift 91205-24900

​FE-f1123

​FE-f1126

​FE-f1127

​FE-f1127-1

4 Position ACC-Off-On-Start , 2 Keys

6 Screw terminals

Copper Contacts

Rating : 24 Volts

FE-F1110 with wire & Connector

Anti-Restart

Key is only removable in the Off position

Applications : Mitsubishi Forklift 91205-24900


Burglar Alarm Switch

2 Position Off-On 2 Keys

2 Screw terminals

Copper Contacts

Rating : 5Amps

With Dust Shutter

Key is only removable in the Off position


3 Position Off-On-Start 2 Keys

3 Blade terminals

Bronze Contacts

Key is only removable in the Off position

Applications : Toyota Forklift


3 Position Off-On-Start 2 Keys

7 Blade terminals

Bronze Contacts

Rating : 12-24Volts

Key is only removable in the Off position

Replaces Lucas Part No.35327


3 Position Off-On-Start 2 Keys

5 Blade terminals

Bronze Contacts

Anti-Restart

Key is only removable in the Off position

Applications : Pollak #4292483

4 Position ACC-Off-On-Start

4 Blade terminals

Bronze Contacts

Anti-Restart

Key is made from POM

Applications : Toyota Forklift 57590-22802-71

Rotary Ignition Starter Switch

4 Position ACC-Off-On-Start

5 Blade terminals

Bronze Contacts

Rating : 12-24Volts

Replaces Lucas Part No.33838

Applications : Volvo Leyland

​FE-f1128

​FE-f1129

​FE-f1130

​FE-f1132

​FE-f1134

​FE-f1135


Rotary Ignition Starter Switch

5 Position OFF(I)-1(II)-2(III)-3(IV)-4(V)

6 Blade Terminals

Brass / Copper Contacts

Applications : Cultivator

​FE-f1137

​FE-f1138


Rotary Ignition Starter Switch

5 Position OFF(I)-1(II)-2(III)-3(IV)-4(V)

8 Blade Terminals

Brass / Copper Contacts

Applications : Cultivator


4 Position ACC-Off-On-Start 2 Keys

4 Blade terminals

Bronze Contacts

Anti-Restart

Key is only removable in the Off position

Applications : Toyota Forklift 57590-23342-71

​FE-f1140


​FE-f1141

​FE-f1142

3 Position Off-On-Start 2 Keys

6 Blade terminals

Bronze Contacts

Rating : 12-24Volts

With water proof PF cover

Key is only removable in the Off position

Replaces Lucas Part No.34228

3 Position Off-On-Start 2 Keys

4 Blade terminals

Bronze Contacts

Anti-Restart

Key is only removable in the Off position

Applications : Nissan Forklift 25150-66105 , 25150-GG10B

​FE-f1143

​FE-f1145

4 Position ACC-Off-On-Start , 2 Keys

4 Screw terminals

Iron Contacts

Key is only removable in the Off position

4 Position ACC-Off-On-Start , 2 Keys

4 Blade terminals

Bronze Contacts

Key is only removable in the Off position

Applications : Toyota Forklift 57590-23322-71



​FE-f1146

4 Position Start-Off-On-Start , 2 Keys

5 Blade terminals

Copper Contacts

Key is only removable in the Off position
